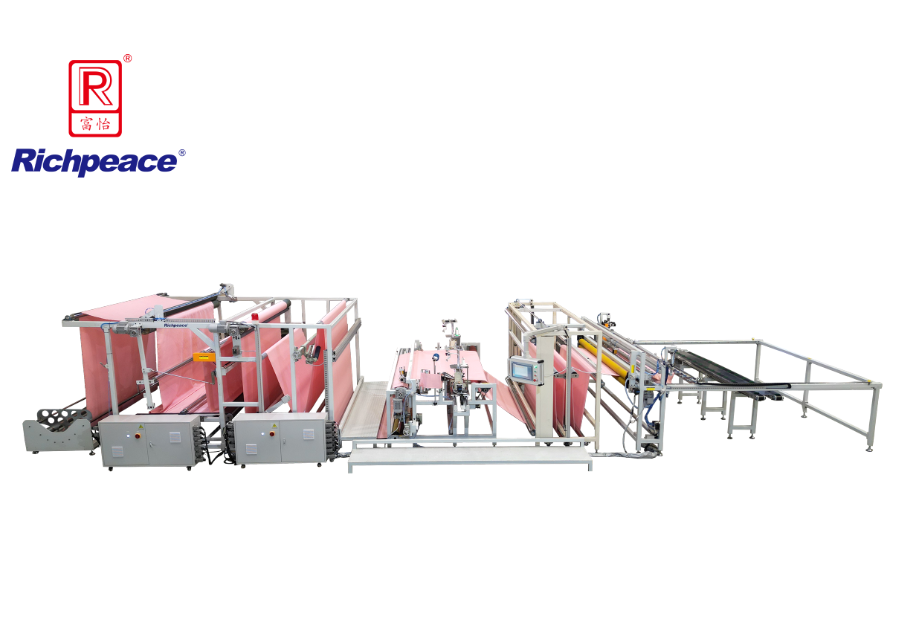

Richpeace automatic bed sheet double-sided sewing machine

RPAS-LM-ES-4-2800×3000-FS1-CN-AL,AT,AEG,ALF,CD-3P380

Suitable for continuous double-sided edge stitching ofhome textile fabrics such as bed sheets and curtains.

Automatic bed sheet integrated machine composed of feeding

mechanism, horizontal cutting mechanism, horizontal conveying

mechanism, horizontal sewing mechanism, and discharge mechanism.

The whole machine adopts fully enclosed protection and has continuous

feeding function.

The horizontal cutting mechanism can automatically cut the longitudinally

sewn fabric according to the set length dimension.

The width of the transverse seam mechanism can be adjusted, and it

automatically rolls both sides with trimming and waste storage functions.

Whole machine servo control, Richpeace III control system, simple

human-machine interaction operation.

Model	RPAS-LM-ES-4-2800×3000-FS1-CN-AL,AT,AEG,ALF,CD-3P380
Speed	4500r/m
Power Supply	380V
Power	35KW
Installation Area	16000×12000×3100mm
