RPFP-NM-PD+DKC-1-1200×1600-SGSF-P+CK-AF-3P380
RPFP-NM-PD+DKC-1-1500×1600-SGSF-P+CK-AF-3P380
RPFP-NM-PD+DKC-1-2500×1600-SGSF-P+CK-AF-3P380
RPFP-NM-PD+DKC-1-1500×1800-SGSF-P+CK-AF-3P380
RPFP-NM-PD+DKC-1-2500×1800-SGSF-P+CK-AF-3P380
Combination of double knives cutting+ Marking/perforating,
Freely switching among tools, Satisfy complex and
changeable cutting process.
Standard configuration:

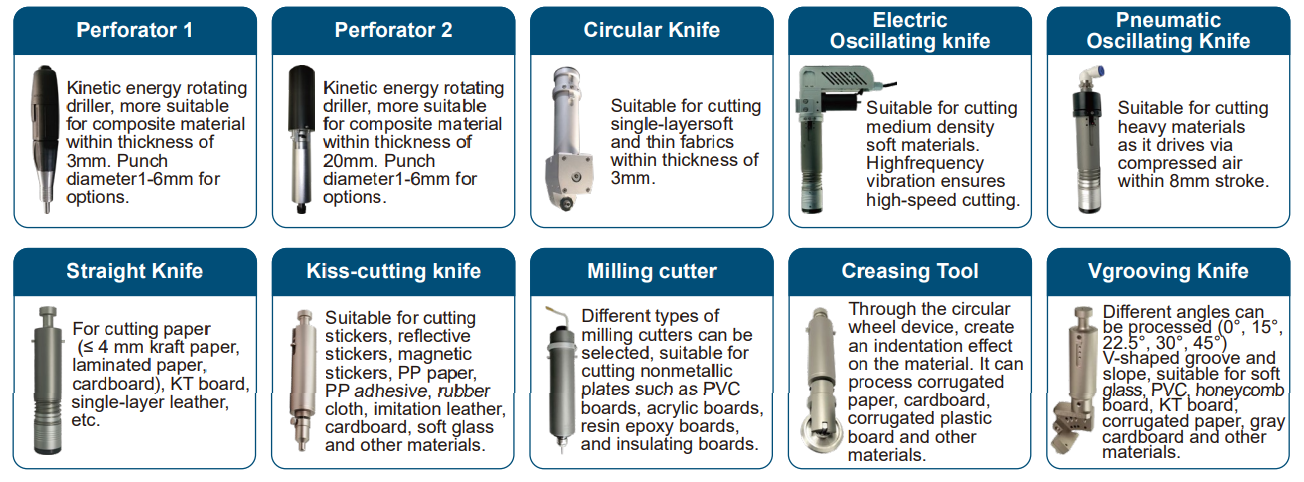

1. Circular Knife + Marker/Perforator 1 (thin material)+ Perforator 2 (thick material)
2. Ordinary feeding rack (suitable for less elastic fabrics)
3. Multiple groups of vacuum absorption blowers, independently controlled by segmented.
Optional configuration:
1. Electric oscillating knife / Pneumatic oscillating knife / straight knife /
kiss-cut knife / milling cutter/creasing tool/V grooving knife, etc.
2. Constant tension feeding rack (suitable for elastic fabric)
3. Silent air pump (when there is no compressed air source)
4. Transformer, Voltage stabilizer.
| Model | RPFP-NM-PD+DKC-1-1200×1600-SGSF-P+CK-AF-3P380 RPFP-NM-PD+DKC-1-1500×1600-SGSF-P+CK-AF-3P380 RPFP-NM-PD+DKC-1-2500×1600-SGSF-P+CK-AF-3P380 RPFP-NM-PD+DKC-1-1500×1800-SGSF-P+CK-AF-3P380 RPFP-NM-PD+DKC-1-2500×1800-SGSF-P+CK-AF-3P380 |
| Size | 1200×1600 1500×1600 2500×1600 1500×1800 2500×1800 |
| Speed | Maximum straight line speed 1500mm/s |
| Power Supply | Three-phase AC380V±10% 50/60Hz (three-phase five-wire system) |
| Power | 5-12kW |
| Installation Area | 2300×2600×1300 3000×2600×1300 4000×2600×1300 3000×2800×1300 4000×2800×1300 |
