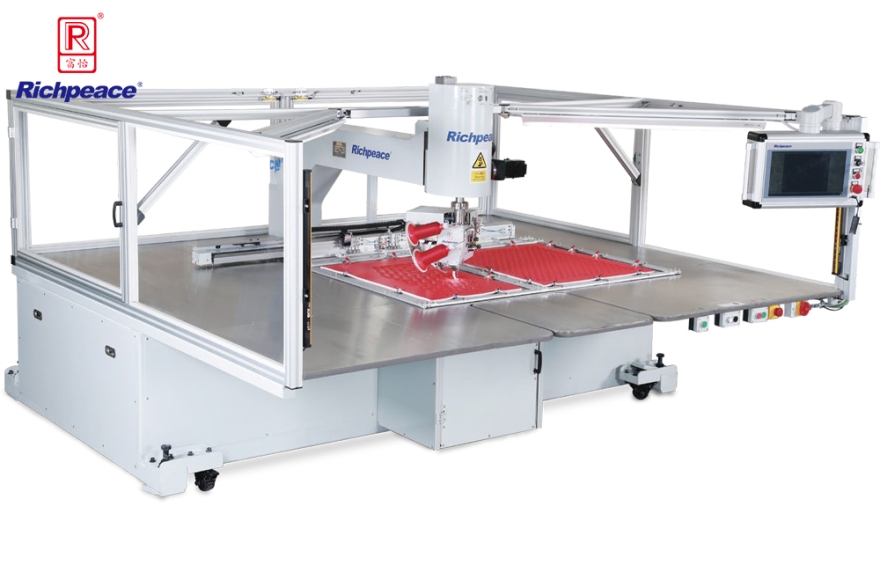

RPAS-L-R-1-1200×800-A-FD5-HR2.6-LH50, RH, UTC-1 P220

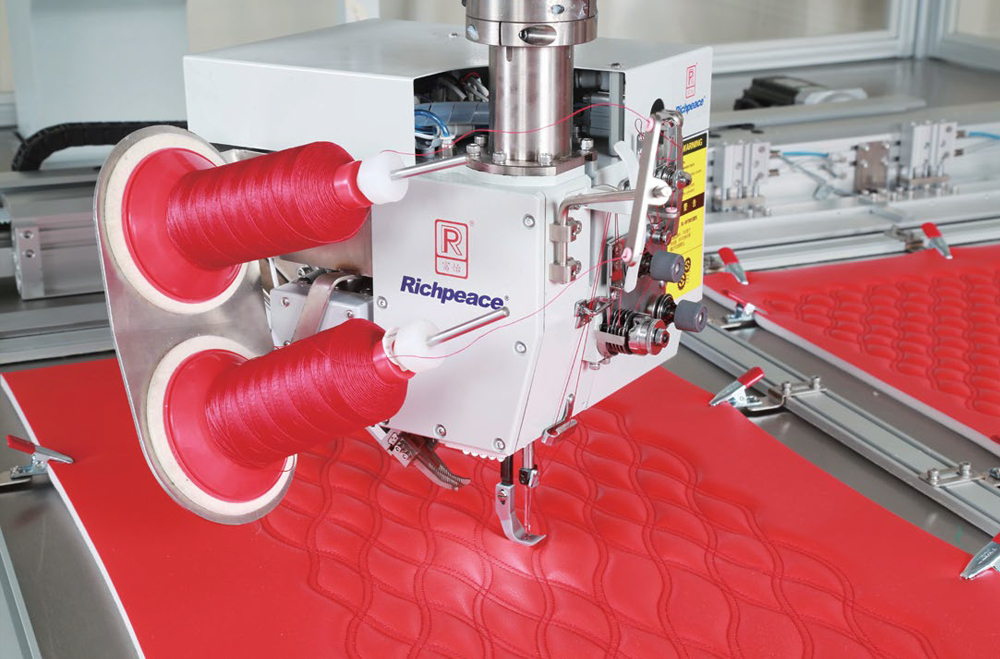

1. Double needles machine head can rotate at any angle to track the sewing stitches, ensure the quality of double threads sewing stitches.
2. Machine head can be lifted up to 50mm. (customization is possible).
3. × 2.6 special thick material rotary hook. ensure nice stitches sewing, use of large capacity bobbin to reduce bobbin changing frequency and improve production efficiency.
4. Template in place detection function.
5. LCD touch screen display, clear display and convenient to operate.
6. Full servo motor control to ensure equipment control accuracy.
7. CNC presser foot to achieve stable sewing of step sewing.
8. With bottom thread usage software to realize prompt machine stop when need to replace bobbin thread.
9. 15-inch LCD touch screen display, providing high-definition picture.
10. Stainless steel workbench top is durable and easy to clean.
| Model | RPAS-L-R-1-1200×800-A-FD5-HR2.6-LH50, RH, UTC-1 P220 |
| Size | 1200mm×800mm (Other sizes can be customized) |
| Speed | 2000rpm (Material, thread, stitch length might vary the working speed) |
| Power Supply | Sinlge phase220V/50HZ |
| Power | 5kW |
| Installation Area | 3050mm×2650mm×1700mm(L×W×H） |
