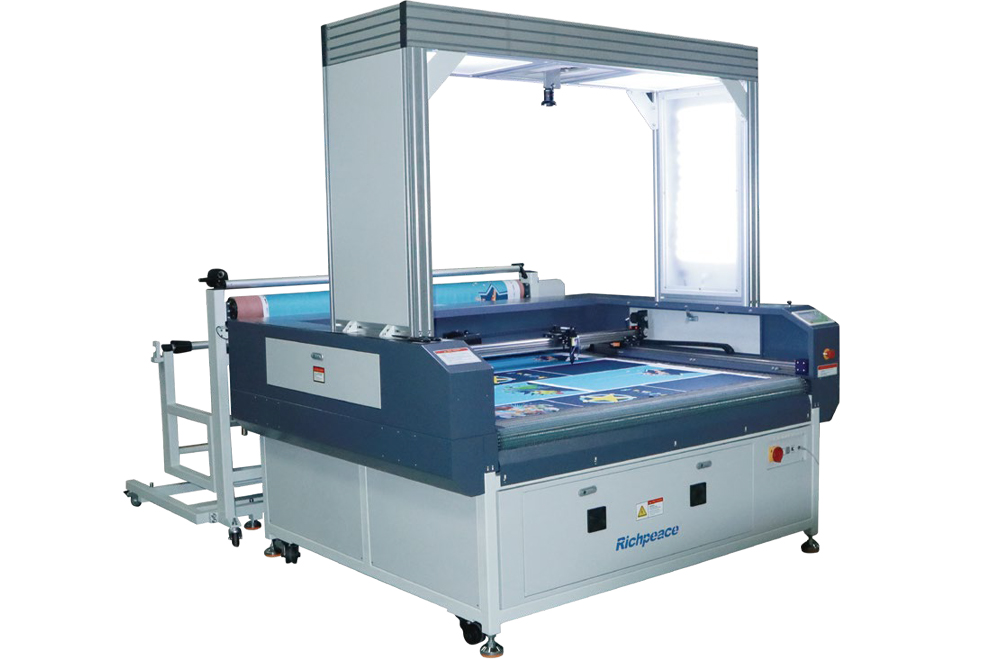

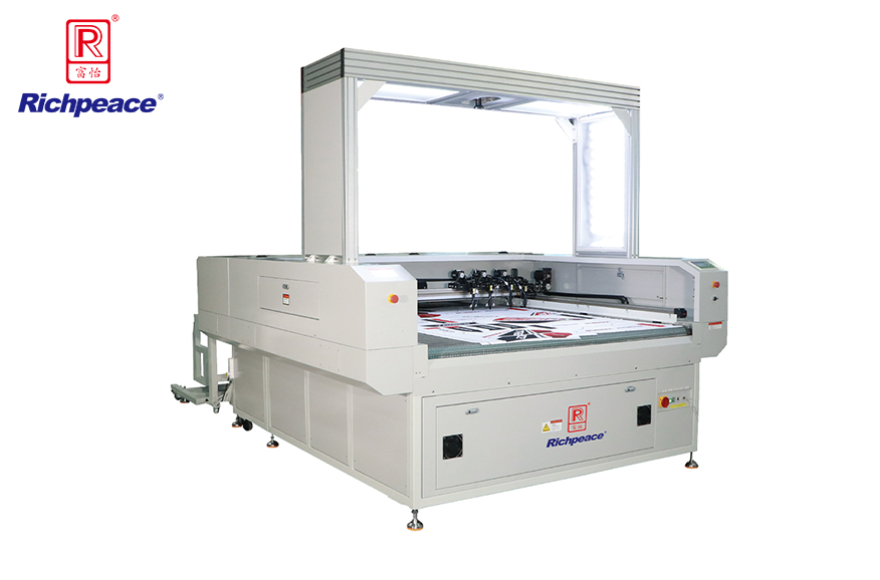

Laser Cutting Machine with Big Camera-oriented System

RPLC-NM-N-1-1600×1000-C-SL-CGC80-LCI,IN-1P220V

RPLC-NM-N-1-1800×1200-C-SL-CGC80-LCI,IN-1P220V

RPLC-NM-N-1-1800×1000-C-SL-CGC80-LCI,IN-1P220V

RPLC-NM-N-4-1900×1000-C-FM-CGC80-LCI,IN-3P380V

Positioning and cutting for digital printing clothing, logo, Home textile, Luggage, Upper of shoes and other graphics, etc.

1. Recognize the graphic outline automatically and cut with high precision;

2. Be able to solve the cutting problems of deforming with high elastic printed fabrics and other fabrics;

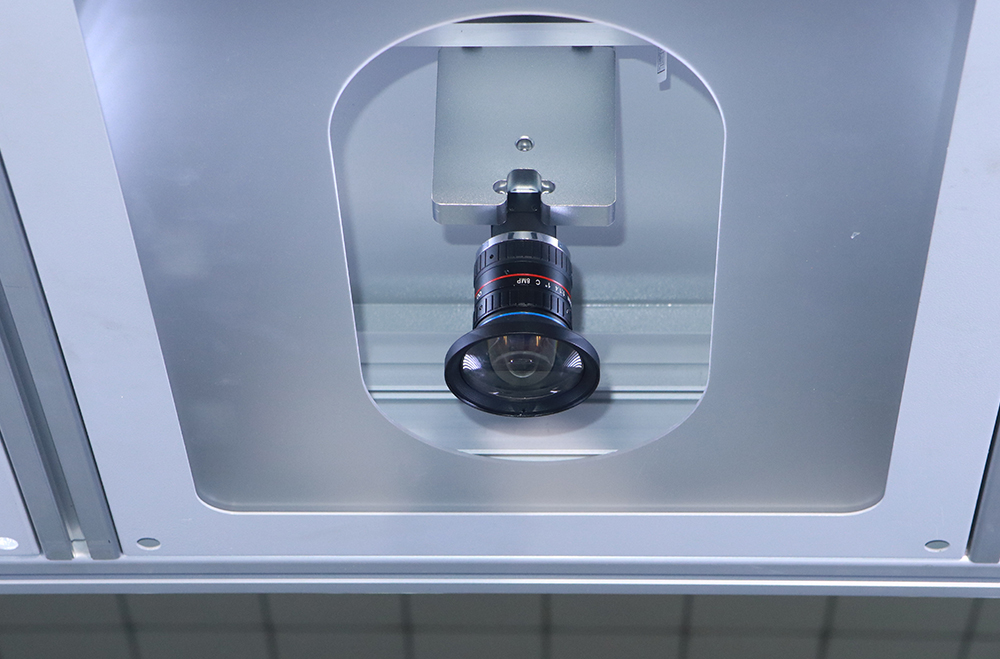

3. Adopt 18 million pixel high precision camera to achieve genuine camera function, camera area up to 1600x1000mm;

4. Be able to cut all kinds of graphics automatically;

5. Can install auto feeding system to realize continuously.

Laser Cutting Machine with Big Camera-oriented System

Model	RPLC-NM-N-1-1600×1000-C-SL-CGC80-LCI,IN-1P220V RPLC-NM-N-1-1800×1200-C-SL-CGC80-LCI,IN-1P220V RPLC-NM-N-1-1800×1000-C-SL-CGC80-LCI,IN-1P220V RPLC-NM-N-4-1900×1000-C-FM-CGC80-LCI,IN-3P380V
Size	1600mm×1000mm 1800mm×1200mm 1800mm×1000mm 1900mm×1000mm
Speed	600mm/s
Power Supply	AC380V/220V±10%,50Hz
Power	1.7KW
Installation Area	2130mm×1950mm×2320mm 2330mm×2150mm×2320mm 2330mm×1950mm×2320mm 2750mm×2650mm×2400mm
