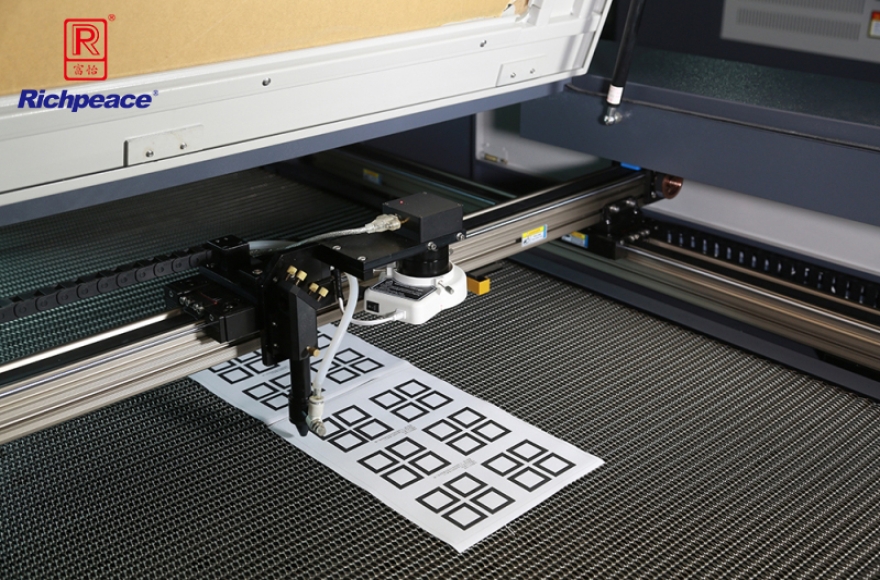

Richpeace Laser Engraving and Cutting Machine - Small Camera Positioning System

RPLC-NM-N-1-900×600-C-SL-CGC80-ALI-1P220V

RPLC-NM-N-1-1200×600-C-SL-CGC80-ALI-1P220V

RPLC-NM-N-1-1300×900-C-SL-CGC80-ALI-1P220V

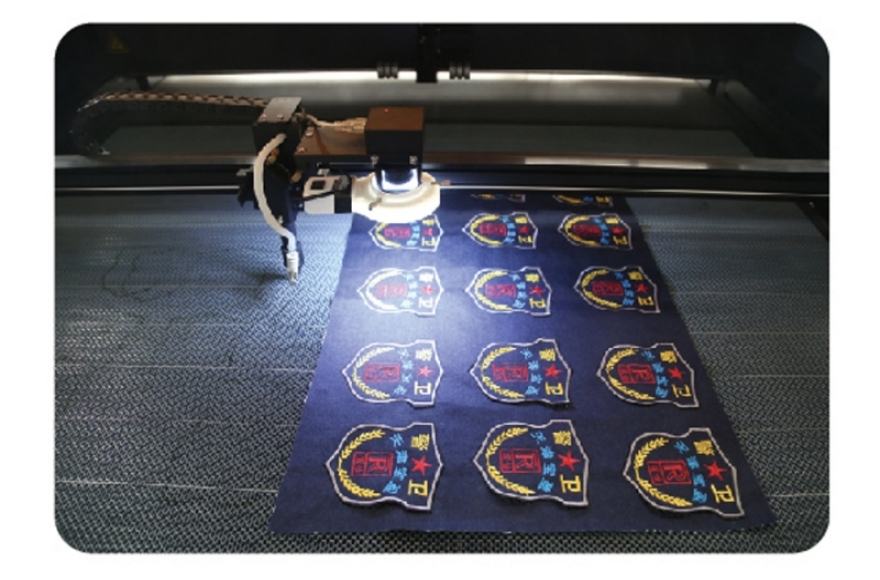

Embroidery logo cutting; Dyeing and printing patterns cutting; Advertisement, Crafts, Leather, Toys, Garments, Model, Paper cutting, etc.

1. Camera frame rate up to 25 frame per second, fast and non-stop.

2. Installing and adjusting the camera easily, just need one time.

3. Automatically search, make sure no miss on cutting pattern.

4. Three ways for pattern recognitizing and cutting.

① Positioning feature point.

② Full pattern automatically cutting with continuously movement.

③ Many recognized methods, such as positioning mark point.

5. It is able to cyclic cutting with automatic feeding system.

Model	RPLC-NM-N-1-900×600-C-SL-CGC80-ALI-1P220V RPLC-NM-N-1-1200×600-C-SL-CGC80-ALI-1P220V RPLC-NM-N-1-1300×900-C-SL-CGC80-ALI-1P220V
Size	900X600mm 1200mm×600mm 1300mm×900mm
Speed	Max 600mm/s
Power Supply	AC220V/110V±10%,50Hz
Power	1.7kW
Installation Area	1650mm×1300mm×1120mm 1950mm×1300mm×1120mm 2050mm×1600mm×1120mm
