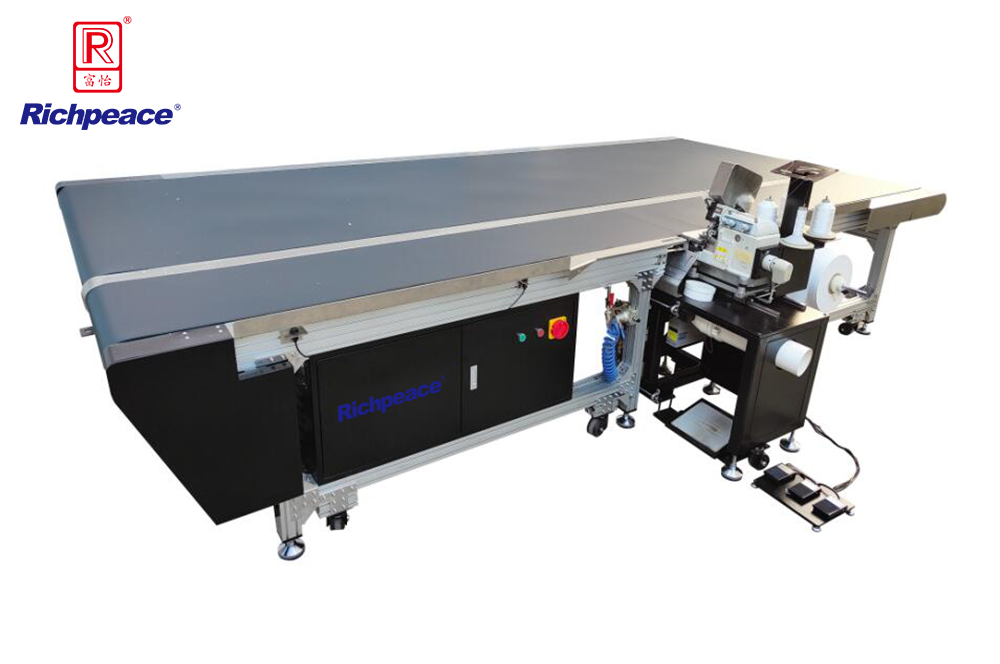

1. This is a high-speed flanging machine for thick materials with automatic conveying of mattress fabric and auxiliary corner of conveyor belt.
2. It is equipped with the thick material flanging head modified by the Japanese Pegasus/JUKI head.
3. It is easy to operate, saves training time, greatly improves work efficiency and ensures high quality .
4. When the very thick and heavy fabric is flanged, the conveyor belt can simultaneously assist the machine head to feed materials synchronously, and the automatic turning angle can reduce the load of the machine head and prolong the service life of the machine head.
Machine Head | Japanese Pegasus/JUKI heavy material flanging head |
Flanging Width | 25MM or 30MM |
Needle Length | 10-80MM |
Presser Foot Lift | 15MM |
Max. Speed | 3000RPM |
Motor Power | 1.9KW |
Table size | 4050×2050×785MM |
Air Pressur | ≤0.8MPA |
Voltage | AC 220V |
| Model | RP-008-SFG |
