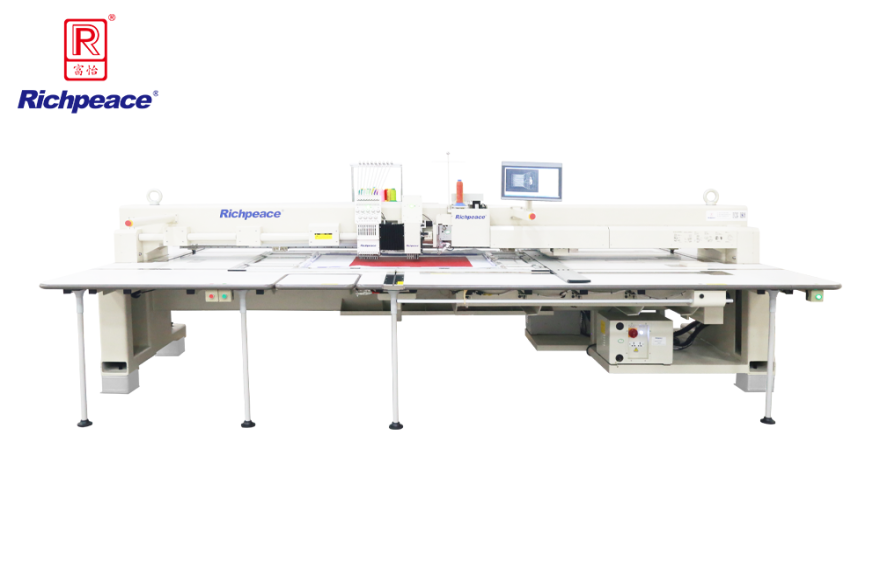

Richpeace Automatic Perforation + Sewing + Embroidery machine

    RPCE-L-P+E+S-1-1200×800-B-P6+F9+IS2-VR1, VR2-LH50, AO-1P220

  • Speed1000rpm
  • Power5.5kW/0.6Mpa
  • VoltageOne phase 220V/50Hz

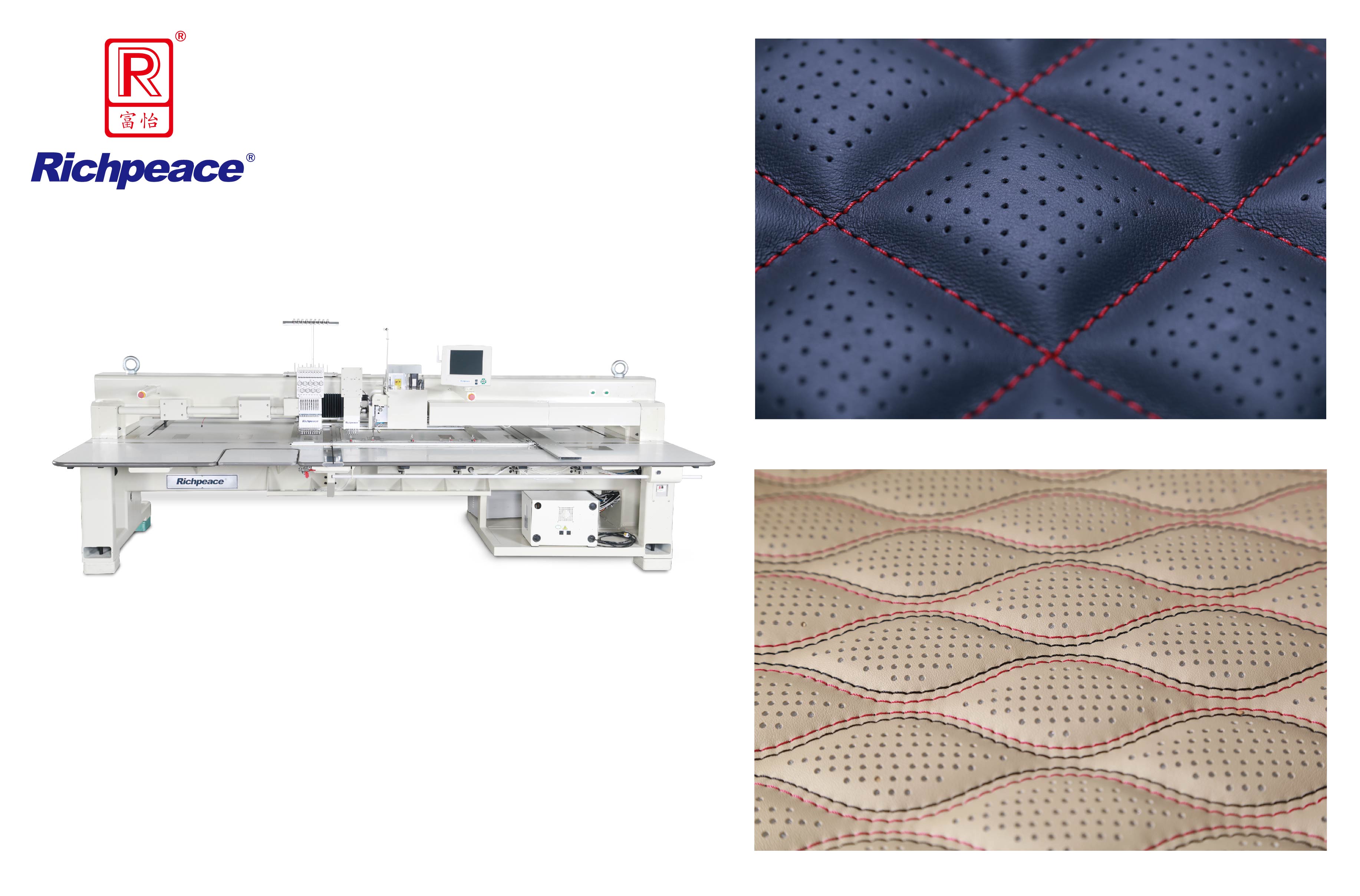

Applicable in field such as car seat covers, automotive interiors, furniture upholstery, sports shoes, leather shoes and leather garment....
Product Video
Product Introduction

1.Richpeace new 3G computer control system,friendly HMI, flexible operation, large storage capacity, ensure highly precise running of the machine.

2. Six sizes round punching needle for perforation head: 0.8mm,1.0mm,1.2mm,1.5mm, 2.0mm, 2.5mm, different sizes combination realize various pattern.

3. Servo motor driving for main shaft and frame driving, independent control.

4. Richpeace self-developed electrical and mechanics technology can meet customization requirements.

5. Bridge structure, stable frame, big sewing area, realizing any pattern design.

6. Equipped with automatic vacuum cleaner to remove the leather crumbs.

7. Automatic lubricating system, improves equipment service life and reduces manual maintenance.

8. 2X size of sewing rotary hook and 1X embroidery rotary hook, all are original from Japan.

9. Lifting sewing head could prevent frame collision and thread off.

10. Specialized multi-functional frame could satisfy different leather and synthetic leather processing.

11. Optional Richpeace PerSew CAD system, free design in sewing pattern and easy to realize the complicated and special processing integrated with embroidery, sewing, perforation together.

Richpeace Automatic Perforation + Sewing + Embroidery machineRichpeace Automatic Perforation + Sewing + Embroidery machine

Product Parameters
Model

RPCE-L-P+E+S-1-1200×800-B-P6+F9+IS2-VR1, VR2-LH50, AO-1P220

Size

900mm×600mm

1200mm×800mm

Speed 1000rpm
Power Supply One phase 220V/50Hz
Power 5.5kW/0.6Mpa
Installation Area

4193mm×2100mm×1650mm

4793mm×2500mm×1650mm
