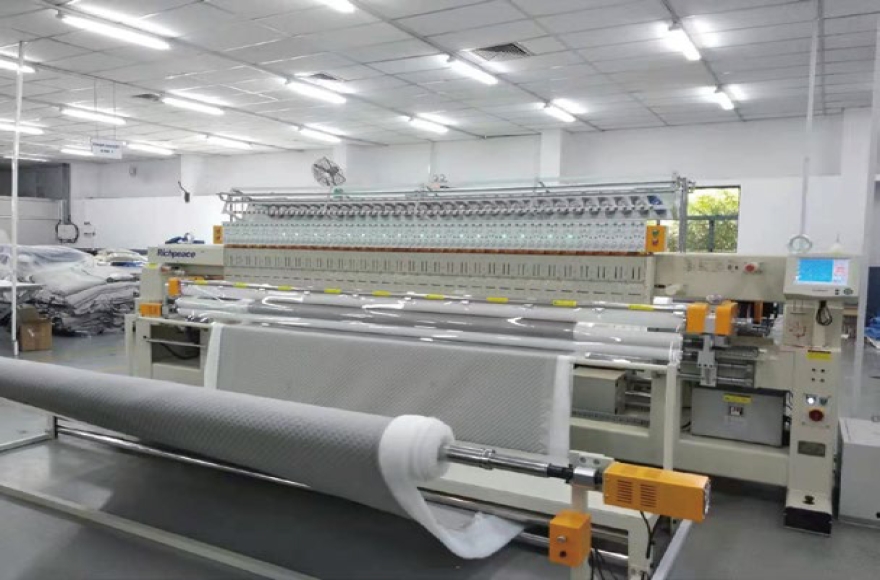

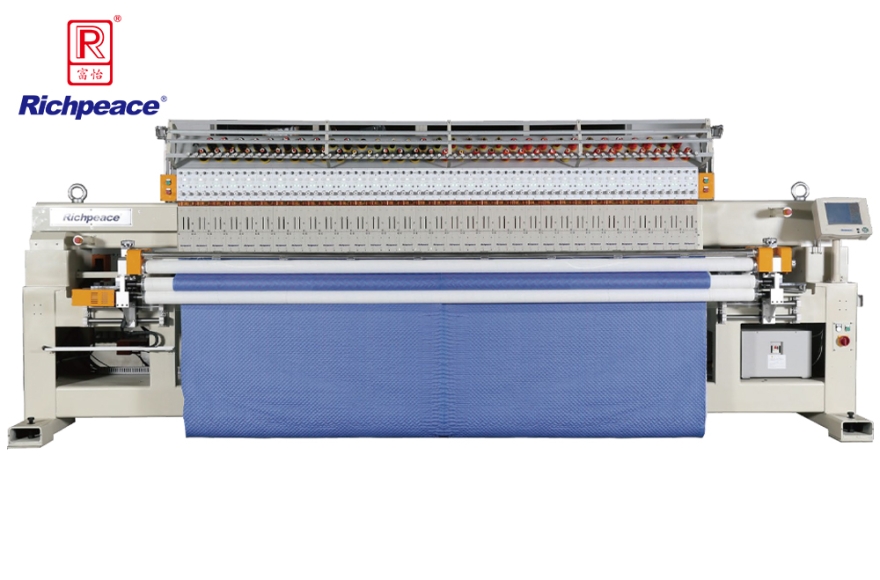

Richpeace Computerized Single-color Single Roll Quilting and Embroidery Machine

    RPQE-NM-SFE-166-305x3302-B-2"CN(50.8)-VR2-NA-3P380

    RPQE-NM-SFE-144-305x3276.6-B-3"CN(76.2)-VR2-NA-3P380

    RPQE-NM-SFE-148-305x2387.6-B-2"CN(50.8)-VR2-NA-3P380

    RPQE-NM-SFE-132-305x1574.8-B-2"CN(50.8)-VR2-NA-3P380

  • Speed850RPM
  • Power6kW
  • VoltageThree-Phase 220V/380V
Summer quilt, bed cover, mattress protective pad, pillow, blanket, garment, seat cover, foot pad, upholstery, etc.
Product Video
Product Introduction

1. Richpeace self-developed Q&E control system, 10.4 inch touch screen HMI.

2. Dual-needle quilting head with min.needle distance (50,8mm, 2inches); Double needle independent control or manual control, free activating or locking. Head interval selection function is adaptable to the production requirement and complicated or combined patterns production.

3. Max Speed: 850rpm, working speed: 550-750 rpm.

4. Automatic thread breakage detection, reduces worker’s tension and machine downtime,improved the working efficiency.

5. International well-known brand jumbo rotary hook, with 2.2 fold bobbin capacity, reduced bobbin changing frequency and improved productivity.

6. Main shaft and X/Y are full servo driving systems, matching for the high quality pattern stitching.

7. Bearing, lead screw, belt, switch, sensor, etc are from the global advanced brands, to ensure the high quality and stable performance and long lifespan.

8. Richpeace professional Embroidery and Quilting pattern design software, freely designing and easy to learn.


Richpeace Computerized Single-color Single Roll Quilting and Embroidery MachineRichpeace Computerized Single-color Single Roll Quilting and Embroidery Machine


Configuration



Product Parameters
Model

RPQE-NM-SFE-166-305x3302-B-2"CN(50.8)-VR2-NA-3P380

RPQE-NM-SFE-144-305x3276.6-B-3"CN(76.2)-VR2-NA-3P380

RPQE-NM-SFE-148-305x2387.6-B-2"CN(50.8)-VR2-NA-3P380

RPQE-NM-SFE-132-305x1574.8-B-2"CN(50.8)-VR2-NA-3P380

Size

3600mm (Max.quilting width)

3576mm (Max.quilting width)

2687mm (Max.quilting width)

1874mm (Max.quilting width)

Speed 850RPM
Power Supply Three-Phase 220V/380V
Power 6kW
Installation Area

5278mm×1400mm×2000mm

5264mm×1400mm×2000mm

4363mm×1400mm×2000mm

3551mm×1400mm×2000mm
