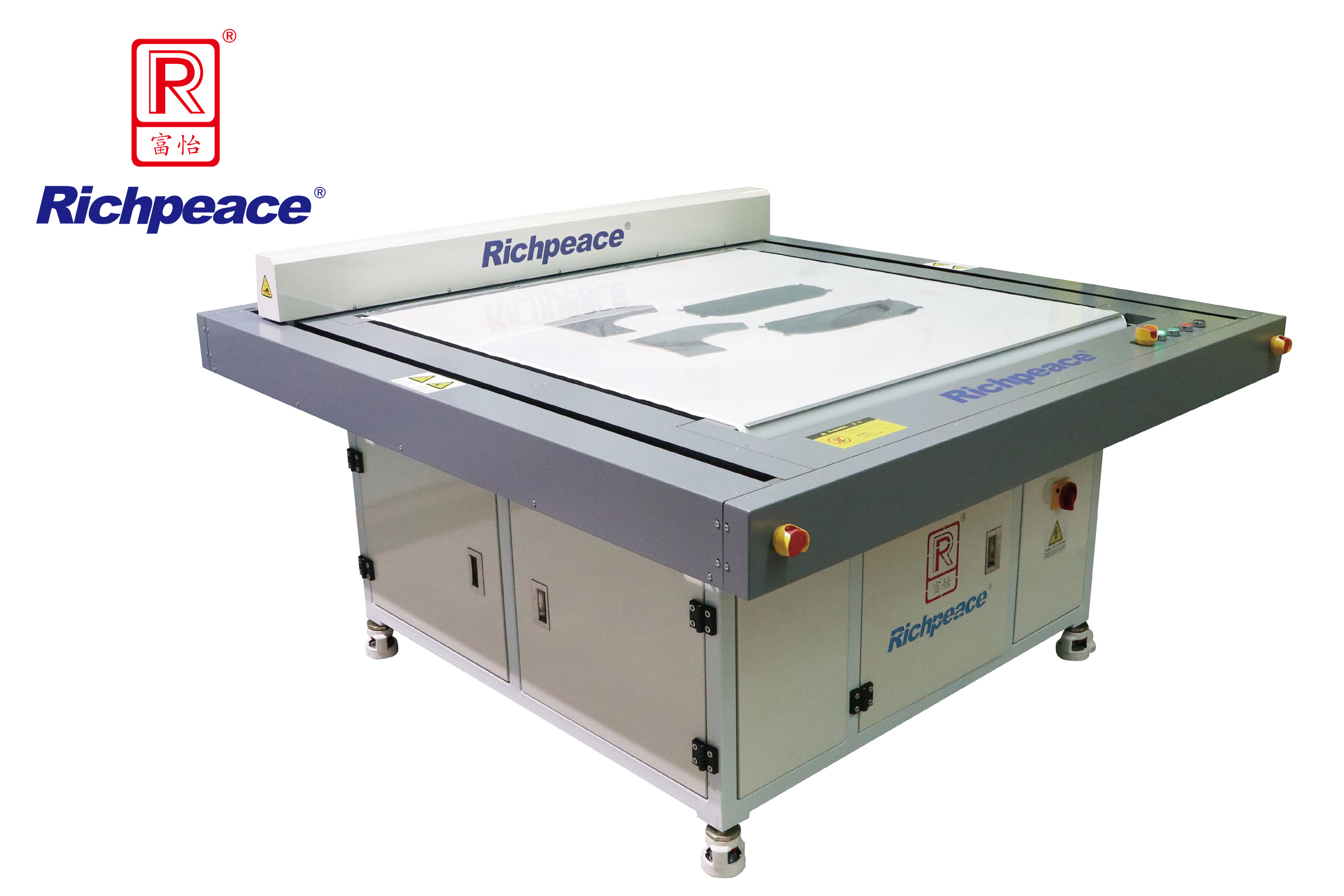

Richpeace Flatbed Scanning Digitizer(Standard)

RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220-S

RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220-S

RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220-S

SpeedMax. 7200mm/min.
Power2kW
VoltageSingle phase AC220V±10% 50/60Hz

Applicable for clothing, furniture, automotive, hometextile, bags & suitcases, shoe-making, toys, medical industries, etc. All kinds of paper pattern andphysical product's panel shape digital input.

Product Video

Product Introduction

1. Adopt line scanning mode, no need extra light compensation, all-weather reliable use.

2. One button to start after placing scanning pieces, can automatically film attaching-vacuum adsorption-auto scanning-auto transmission-auto film withdrawal.

3. According to different models, support ultra-long width scanning. Scanning speed up to 7200mm/minute.

4. Scanning resolution 150-300DPI, high definition panoramic 1:1 image to ensure effective identification of various contours/notches/inner holes.

5. According to the actual sample, the scanning height can be set through the touching screen, to adapt the different thickness of the material.

6. According to the color of scanning pieces, background color can be quickly switched, flexibly respond to different materials.

7. Output general DXF file format, compatible with most of CAD software in the market.

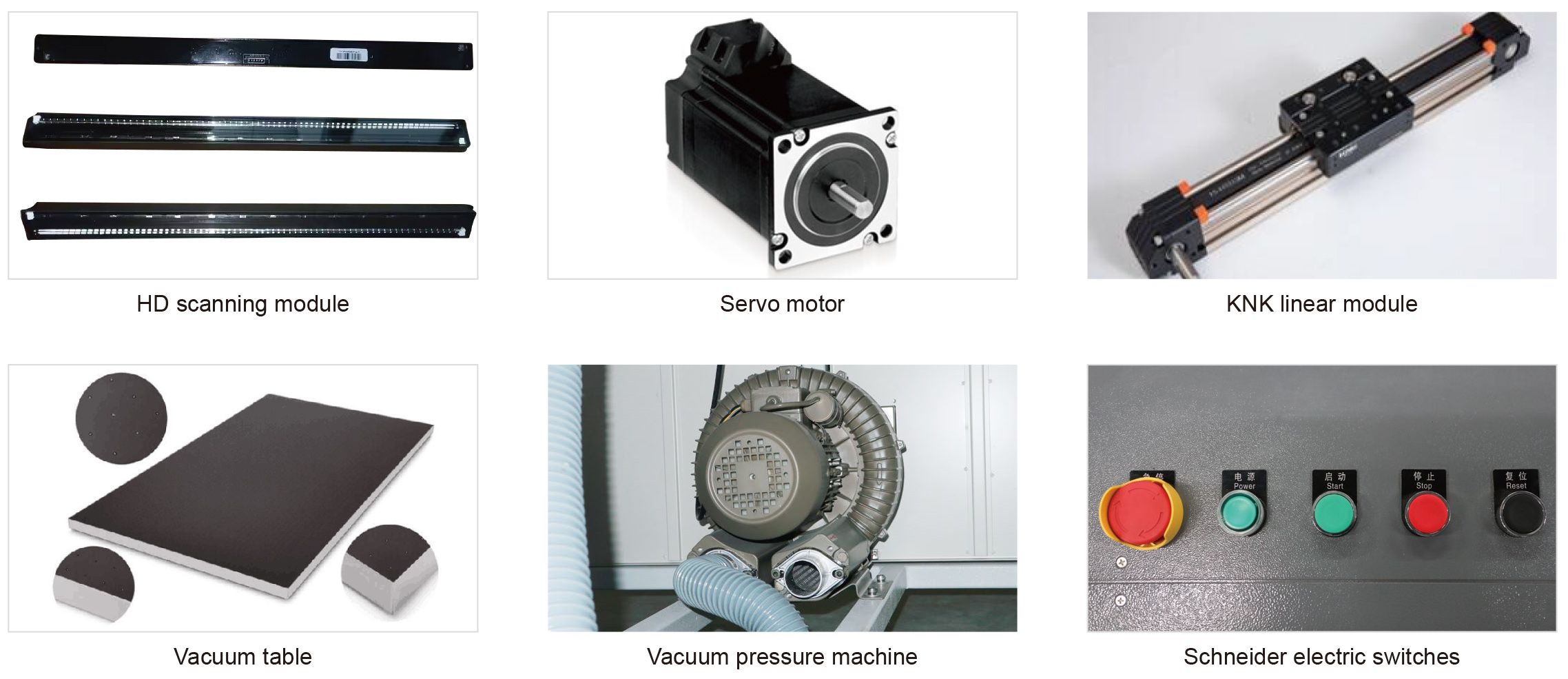

Machine configuration

20240415富怡平板掃描數(shù)字化儀 (標(biāo)準(zhǔn)型)_英文-2

Product Parameters

Model	RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220-S RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220-S RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220-S
Size	1000mm×1200mm 1500mm×1200mm 2000mm×1200mm
Speed	Max. 7200mm/min.
Power Supply	Single phase AC220V±10% 50/60Hz
Power	2kW
Installation Area	2300mm×1750mm×1300mm 2800mm×1750mm×1300mm 3300mm×1750mm×1300mm
