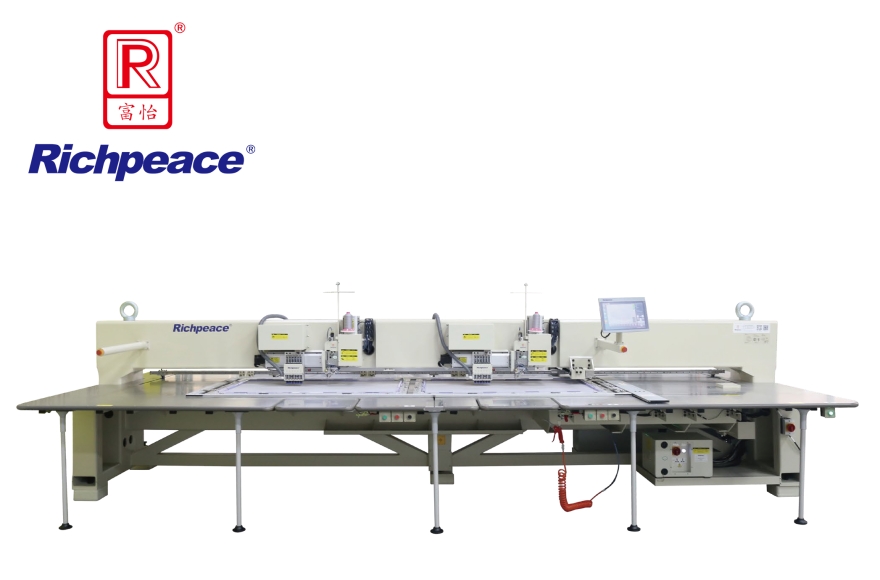

Richpeace Automatic Perforation and Sewing Machine(Multi-puncher / Heavy Mechanism + Sewing)

    RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-LH50,AO-1P220

    RPCE-L-P+S-2-900×600-B-P6+IS2-VR2-LH50,AO-1P220

    RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-LH50,AO-1P220

    RPCE-L-P+S-2-1200×800-B-P6+IS2-VR2-LH50,AO-1P220

  • Speed800-1200 stitches/min. 800 holes/min.
  • VoltageSingle Phase 220V / Three Phase 380V
Applied to integrated perforating and sewing technique on leather and ultra-fiber leather with different thickness, like car seat, airplaneseat, luggage and bag, furniture, etc.
Product Video
Product Introduction

1. Integrated perforation and sewing in one machine, standard punching, beautiful stitches.

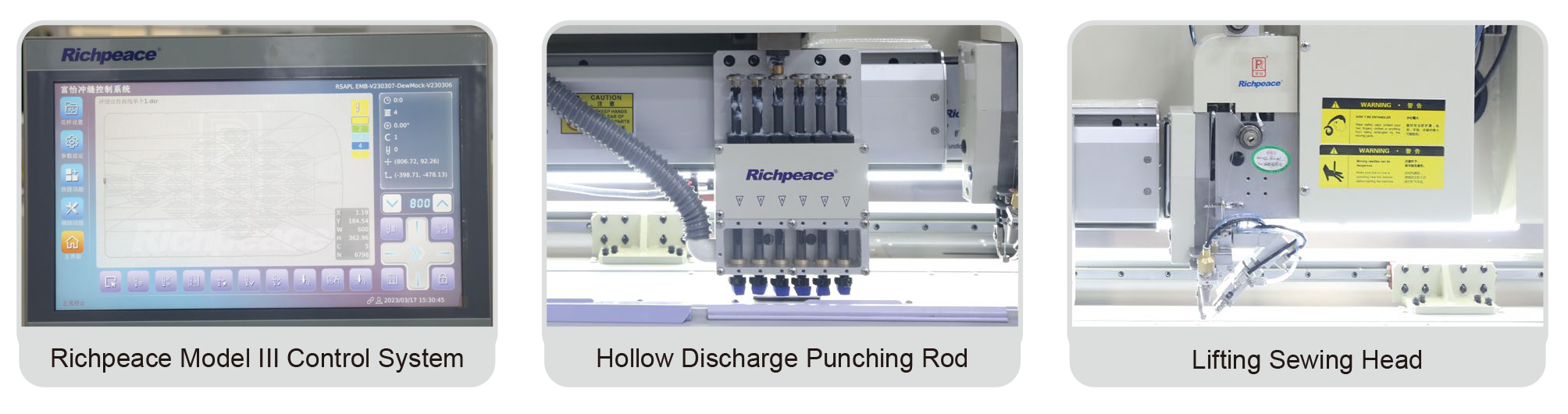

2. Richpeace Model III Sewing Control System, ARM core + LINUX system.

3. HD industry panel, easy operation.

4. Richpeace independently developed professional leather sewing head, enables more beautiful and stable stitching on leather sewing.

5. Sewing head adopts the lifting structural design with a lift stroke of 50mm, which facilitates the replacement of frames and is conducive to cross-step sewing.

6. 2-fold leather rotary hook ensures perfect stitching and product quality.

7. DLC treated needle bar and rotary hook shaft are more wearresistance and can satisfy high-speed running with less oil or no oil.

8. Functioned with automatic thread-trimming, thread-breakage detection, bobbin-thread counting.

9. Exclusive punching head, professional punch box mechanism, hollow-discharge punching rod, effectively avoid the rod obstructed and ensure the scrap separated smoothly.

10. 6 specs of punching tools equipped on each head, puncher sizes are supported: 0.8mm-5mm. Cost-effective, suitable for mass production.

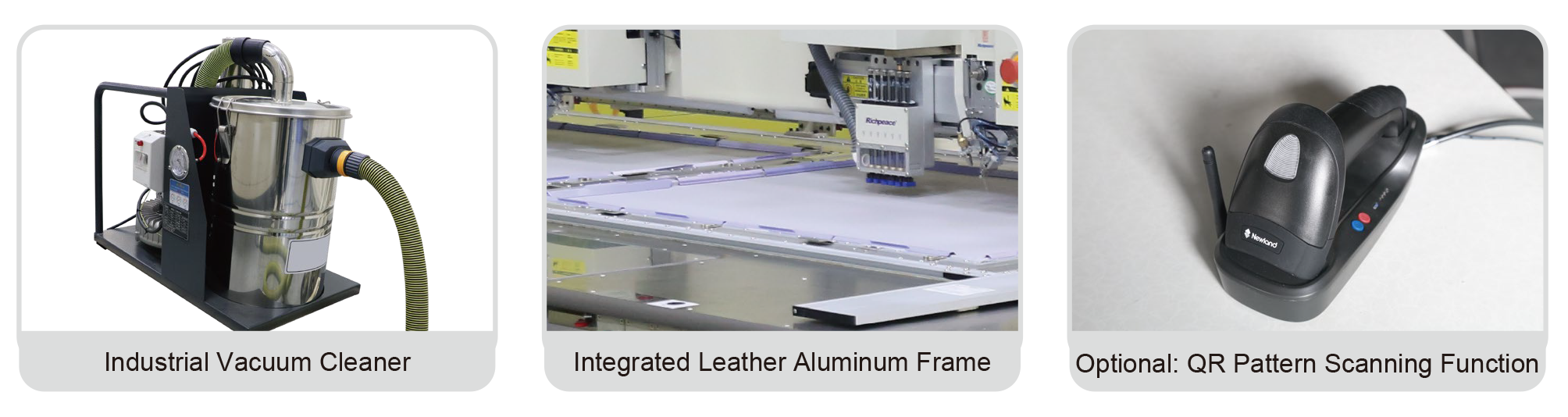

11. Powerful industrial vacuum cleaner, smooth and clean.

12. Optional Richpeace Auto-Sew CAD, any designs can be made, simple and easy to learn.

Main Configuration


Product Parameters
Model

RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-LH50,AO-1P220

RPCE-L-P+S-2-900×600-B-P6+IS2-VR2-LH50,AO-1P220

RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-LH50,AO-1P220

RPCE-L-P+S-2-1200×800-B-P6+IS2-VR2-LH50,AO-1P220

Size

900mm×600mm

900mm×600mm

1200mm×800mm

1200mm×800mm

Speed 800-1200 stitches/min. 800 holes/min.
Power Supply Single Phase 220V / Three Phase 380V
Installation Area

3500mm×2120mm×1470mm

4120mm×2520mm×1470mm

4764mm×2120mm×1470mm

5664mm×2520mm×1470mm
